Injection Moulders

We currently have the following injection moulders in stock.

<H3>Windsor Injection Moulder Type 40/50MR - 300 Ton</H3>100mm Tie bars, 760 wide plattens, 870 in height. Tie-bar vertical centres 630, Tie-bar horizontal centres 590mm. <BR>Condition : Mechanically refurbished, but needs controls refurbishment. Vickers Hydraulics system throughout. Ruston & Hornsby Screw Drive 0-200rpm<BR>Stroke 0-180mm<BR>Injection Cylinder Pressure 0-210 kg/cm^3<BR>Serial Numbers, Model Numbers, Makers : PECO Machinery Sales Ltd, London, England, MAchine No 47062 Type 40/50MR, Electica Circuit No M30A929 A955 K367, Electical Supply 400-440 Volts, 50 HZ, 3 Phase, 4 Wire, Normal 60 kVA, Heater Load 19.5kW. Vickers Sperry Rand, Havant England, Flow Control Valve Model No FG 10 65 11 ENU 4, Relief Valve Model OG 10 B 10 ENA, Hydtrostatic Transmission Patent 886923 Mark M4500C Serial 7153-1300-8, Newman Induction Motor, Frame C404/DC349348 Serial No X578002, 60HP, 985 rpm, 400-440 Volts, 85 Amps, 3 Phase, 50 Hz, Insul Class 3, Connection Diagram 03025, CMR Rating.

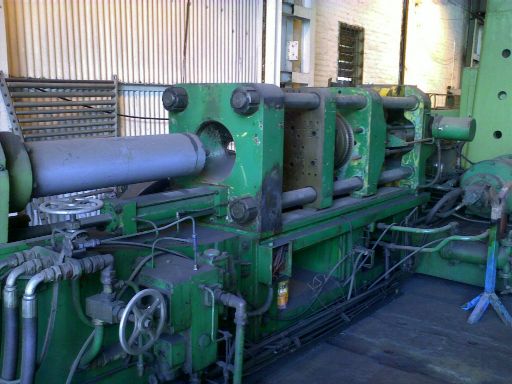

Windsor Injection Moulder Type 40/50MR - 300 Ton

100mm Tie bars, 760 wide plattens, 870 in height. Tie-bar vertical centres 630, Tie-bar horizontal centres 590mm.
Condition : Mechanically refurbished, but needs controls refurbishment. Vickers Hydraulics system throughout. Ruston & Hornsby Screw Drive 0-200rpm
Stroke 0-180mm
Injection Cylinder Pressure 0-210 kg/cm^3
Serial Numbers, Model Numbers, Makers : PECO Machinery Sales Ltd, London, England, MAchine No 47062 Type 40/50MR, Electica Circuit No M30A929 A955 K367, Electical Supply 400-440 Volts, 50 HZ, 3 Phase, 4 Wire, Normal 60 kVA, Heater Load 19.5kW. Vickers Sperry Rand, Havant England, Flow Control Valve Model No FG 10 65 11 ENU 4, Relief Valve Model OG 10 B 10 ENA, Hydtrostatic Transmission Patent 886923 Mark M4500C Serial 7153-1300-8, Newman Induction Motor, Frame C404/DC349348 Serial No X578002, 60HP, 985 rpm, 400-440 Volts, 85 Amps, 3 Phase, 50 Hz, Insul Class 3, Connection Diagram 03025, CMR Rating.
